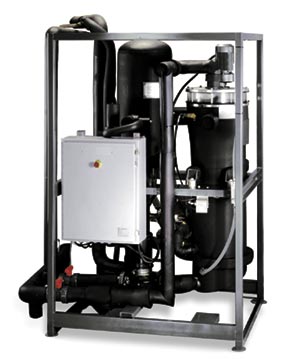

ORE-25
|
ORE-50
Aluminum cladded insulation option shown
|

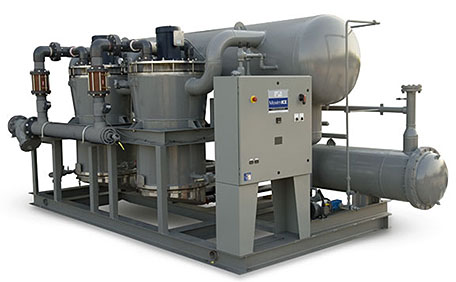

ORE-200XL
|

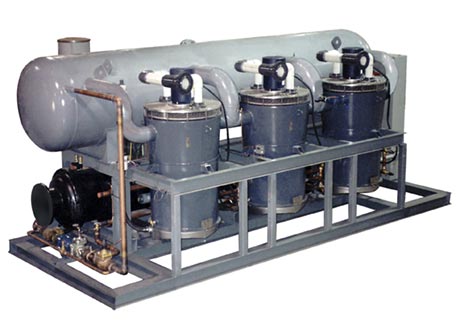

ORE-300XL
XL models include water-cooled condenser
|
ORE Specification / Capacity Information
|
(1) MaximICE units are offered in these standard sizes. Multiple units can be combined on a skid for larger capacities.
(2) XL Models include water cooled condenser in addition to low pressure receiver which is standard on all models.
(3) R134a and R507 can also be used and are similar in capacity range. For other refrigerant applications please consult factory.
MaximICE
MODEL (1)
|
CAPAPCITY – TONS (KW)
|
EVAPORATOR
DIMENSIONS (2) Inches (mm)
|
RANGE: R-22(3)
|
MAX: NH3
|
ORE-3
|
3 (11)
|
N/A
|
30 x 19 x 66
(1,473 x 1,168 x 2,210)
|
ORE-25
|
15 ~ 33 (53 ~ 116)
|
24 (84)
|
58 x 46 x 87
(1,473 x 1,168 x 2,210)
|
ORE-50
|
35 ~ 65 (123 ~ 229)
|
42 (148)
|
70 x 58 x 87
(1,178 x 1,473 x 2,210)
|
ORE-100
|
70 ~ 130 (246 ~ 457)
|
87 (305)
|
94 x 78x 96
(2,388 x 1,981 x 2,439)
|
ORE-200XL
|
140 ~ 260 (492 ~ 914)
|
186 (654)
|
170 x 90 x 92
(4,318 x 2,286 x 2,337)
|
ORE-300XL
|
265 ~ 390 (932 ~ 1,372)
|
280 (985)
|
223 x 90 x 94
(5,664 x 2,286 x 2,337)
|
ORE-400XL
|
400 ~ 520 (1,407 ~ 1,829)
|
375 (1,319)
|
265 x 92 x 107
(6,731 x 2,337 x 2,718)
|
See MaximICE systems diagrams
|
|
